Introducing The Marantz AV 20 Pre Amplifier & AMP 20 Power Amplifier

Now available to pre-order from AWE, the Marantz AV 20 and AMP 20 represent the next evolution in high-end home cinema separates. These two new models expand on the home theatre legacy of the award-winning AV 10 and AMP 10 combination, along with the CINEMA 30 AVR.

Developed and manufactured at Marantz’s own factory in Japan, the pairing delivers exceptional performance, and showcase elegant design, with their multi-layer chassis that features an extensive use of copper.

Let’s delve deeper into what makes them so special:

AV 20 Reference 13.4 Channel Pre Amplifier

13.4 Channel Processing – Supports up to 15.4 channel pre-outs (RCA & XLR) with 13.4-channel processing for expansive immersive audio setups.

Premium Audio Formats – Full decoding for Dolby Atmos, DTS:X Pro, Auro 3D, IMAX Enhanced, and 360 Reality Audio.

Advanced Room Calibration – Includes Audyssey MultEQ XT32 as standard. Dirac Live room correction available via upgrade for enhanced acoustic precision.

HDMI 2.1 & 8K Ready – 7 HDMI inputs and 3 outputs (including Zone 2 support), all supporting up to 8K/60Hz and 4K/120Hz, with full 40Gbps bandwidth. Compatible with HDR10+, Dolby Vision, Dynamic HDR, HLG, and ALLM/VRR/QFT for seamless gaming and video.

HEOS Built-In – Integrated multi-room streaming via HEOS, including support for Spotify, AirPlay 2, TIDAL, Amazon Music, and more.

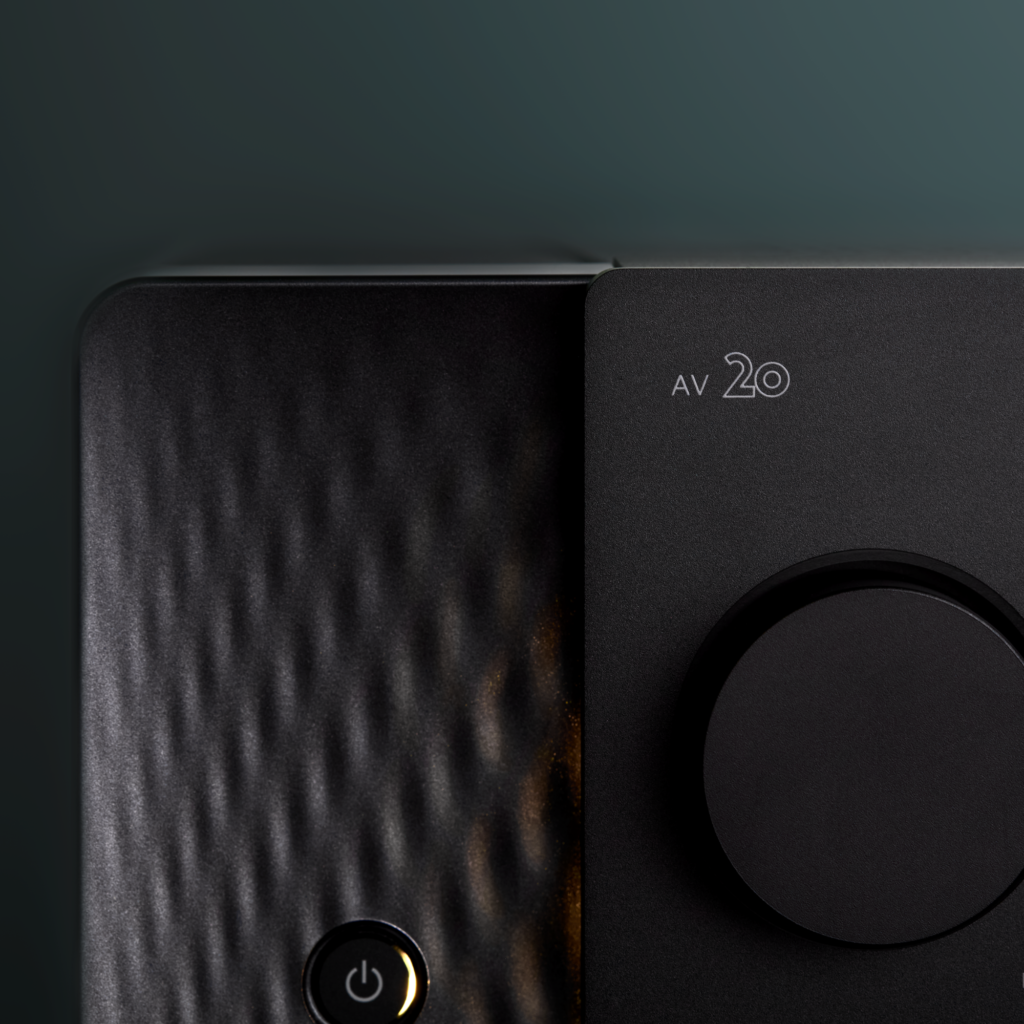

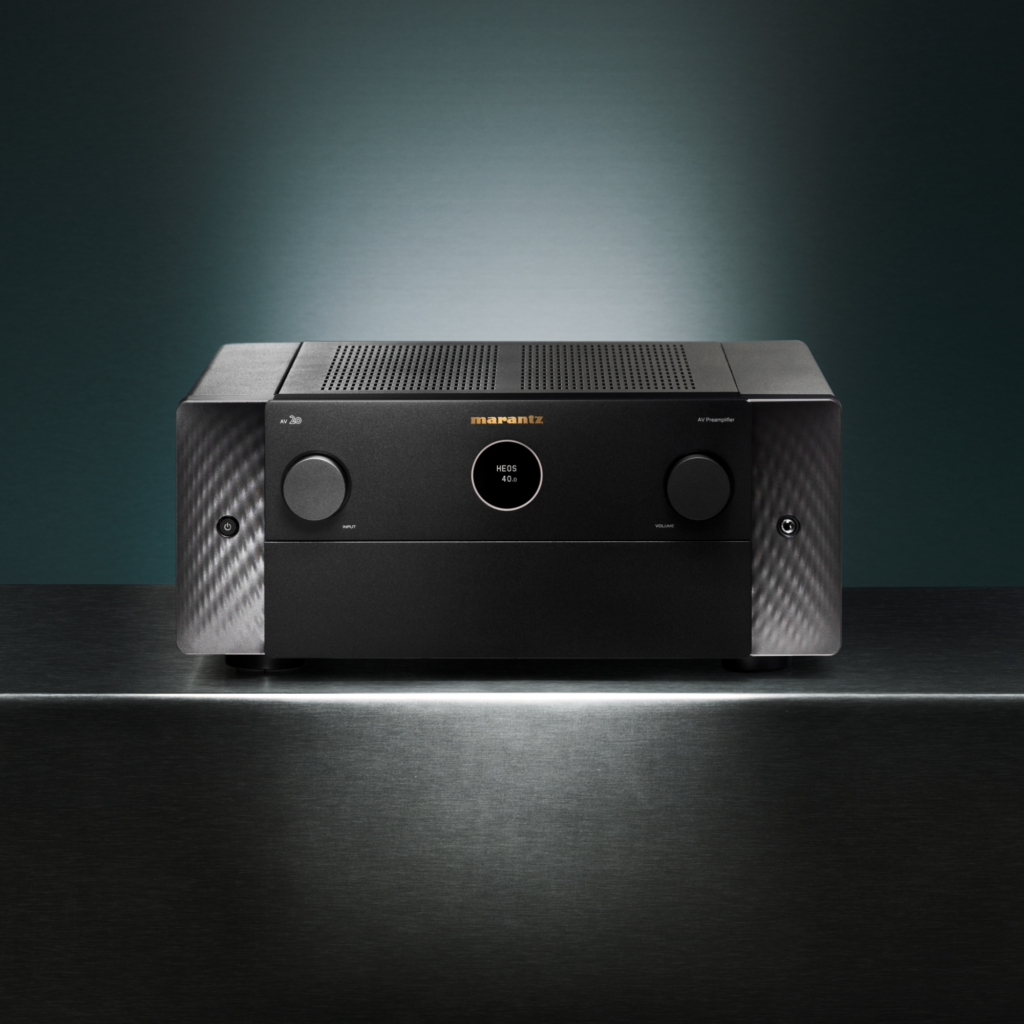

*The AV 20 includes Marantz’s HDAM discrete circuitry and offers seven 8K UHD-compatible HDMI inputs.*

Custom Installation Ready – Features IP control, RS232, IR Flasher In, Web Control, 3 DC triggers, and Zone 2 HDMI out – ideal for integrators.

Balanced & Unbalanced Outputs – Full 15.4-channel XLR and RCA outputs with independent subwoofer control, allowing for flexible system design and high-end signal integrity.

Build Quality & Engineering – Rigid copper-plated chassis, toroidal transformer, SA3 HDAM modules, and gold-plated RCA terminals underline its audiophile-grade construction.

Smart Home Compatibility – Roon Ready, – Apple HomePod support, and control via Marantz AVR Remote App (Android/iOS/Kindle) enhance modern integration.

Modern UI & Setup Assistant – Updated HD GUI with Setup Assistant, Smart Select, and front OLED display ensure a smooth user and installer experience.

Connectivity Highlights – Wi-Fi, Bluetooth, Ethernet, Bluetooth retransmit, front USB input, phono (MM) input, and high-resolution file support (DSD, FLAC HD, ALAC, WAV).

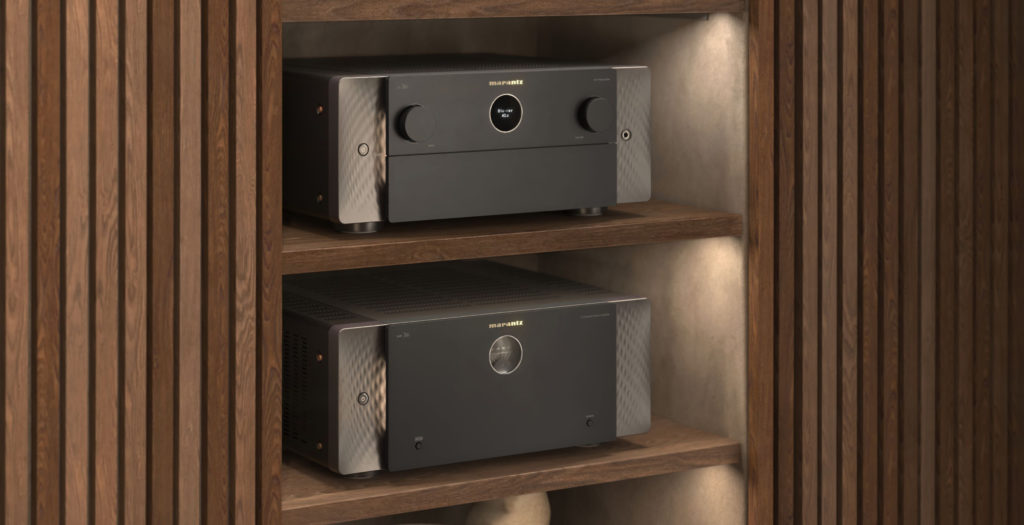

*(L to R) Lifestyle shot of the Marantz AV 20 and AMP 20 in a home cinema setting.*

AMP 20 Reference 12 Channel Power Amplifier

12-Channel Power Amplification – Drives up to 12 loudspeakers with balanced (XLR) and unbalanced (RCA) inputs via a rear selector switch for flexible system design.

BTL & Bi-Amp Capability – Configurable for bridged (BTL) mode and bi-amp drive, ideal for high-demand speaker setups and optimising performance per channel.

High Power Output – Delivers 200W per channel (8 ohms, 5ch drive) and up to 400W (4 ohms, 2ch drive) – capable of powering premium home cinema systems with authority.

Audiophile Engineering – Features a copper-plated chassis, high-current architecture, and symmetrical layout for clean signal paths and reduced interference.

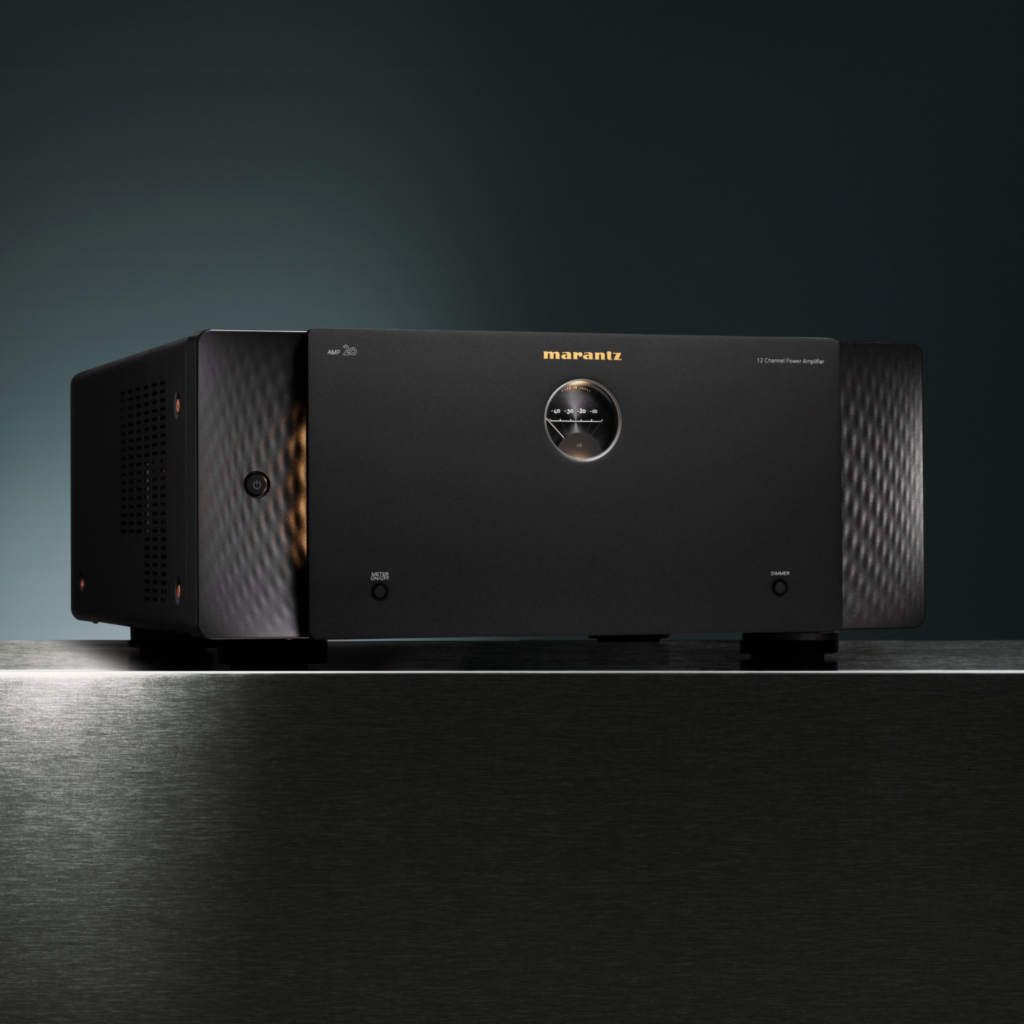

*The AMP 20 is a powerful 12-channel amp, ideal for pairing with the AV 20 for a high-performance home theatre system.*

Balanced & Unbalanced Inputs – Dedicated selector switch allows seamless integration with any high-end AV processor, including the Marantz AV 20, via XLR or RCA.

Installation-Friendly – Equipped with IR Flasher In, RS232, DC trigger input/output, and Marantz Remote Bus for reliable integration in custom installations.

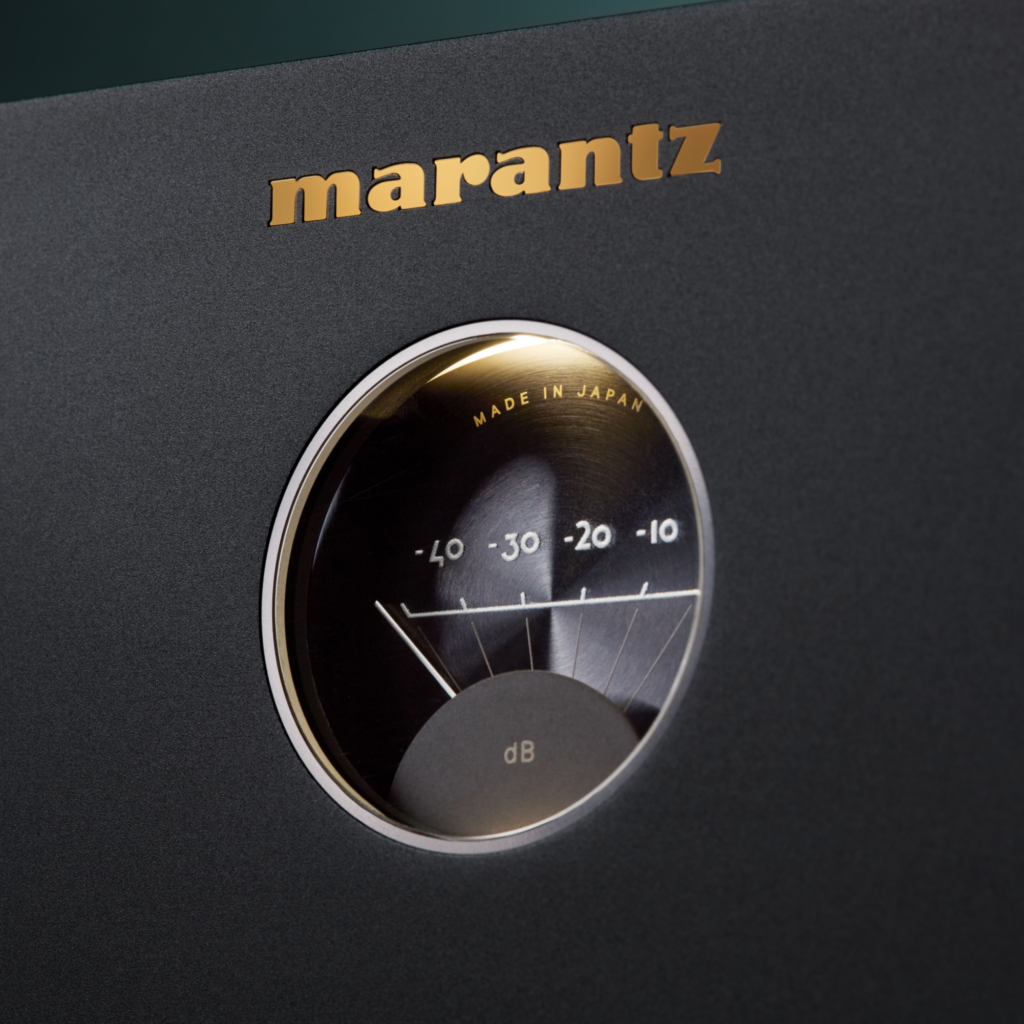

Visual Feedback – Elegant level meter display on the front panel gives instant visual reference of amplifier activity.

Premium Build Quality – Solid metal front panel and copper-plated construction.

To learn more about the new Marantz AV 20 or AMP 20, or to place a pre-order, contact our Sales team at 01372 729777 or email sales@awe-europe.com.
